EV240 mapping

​​Fully electric VTOL

RTK Ublox F9P, without Compass calibration

Fully Carbon Fiber Composite

60 km Radio

10 km HD Transmission *optional

Altitude Maintain Radar *optional

Richenpower EV240 is a fully electric VTOL designed for mapping. The airframe is made of Carbon Fiber which is lighter and stronger than that made of fiberglass. It feachers three landing feet, 5.5kg load and VTOL. It can take surveillant cameras less than 1.6 kg.

EV240: Service
朱雀无人机 (3).jpg
EV240: Image

Aerobatics

EV240: Video

Ardupilot Copter


X7+ APM Autopilot + RTK


Ublox F9P RTK


Mission Planner + QGC


10 km Image Transmission


90km Radio

EV240: Features
EV240: Video

10 or 30 kilometers HD hdmi image transmission *optional

EV240: Image
EV240: Image
朱雀无人机 (4).jpg
EV240: Image

Packing List


EV240 Air frame x 1


Case x 1


Power Systems x 1

EV240: Team

EV240 VTOL Parameters

Windspan

2398 mm

Length

1520 mm

Height

356 mm

GNSS+D-RTK Dual Positioning System Hovering Accuracy (cm)
GNSS* GPS+GLONASS+BEIDOU

Duel GPS (RTK)
D-RTK Enabled: horizontal & vertical±10 (when Beido available)
D-RTK Disabled: Horizental±60 vertical±30 radar modular enabled±10

Packing Dimensions (L x W x H)

1590 x 430 x 400 mm

Packing Weight

22.08 kg

Empty Weight

4.5 kg

Maximum Takeoff Weight

10 kg

Payload

1.6 kg

Speed

18 to 35 m/s

Cruising Speed

19 m/s

Stall Speed

15 m/s

Climb Rate

4 m/s

Flight Time

Zero Payload: 3.5 hours
1 kg Payload: 2 hours

Flight Range

220 km

Takeoff Altitude above sea level

4500 m

Temperature

-20°C to 50°C

Wind Resistance

Takeoff 10 m/s
Cruise 12 m/s

EV240: 清單

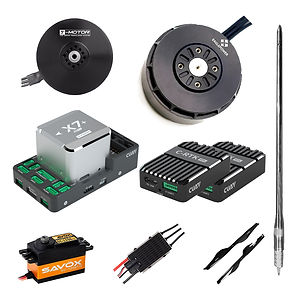

Power Systems & Autopilot Setup

Autopilot Setup:

CUAV X7+ x 1

CUAV Airspeed Sensor x 1

RTK:

C-RTK UbloxF9Ps x 2

1) Sunnysky motor x 1

2) T-motor Flame ESC x 1

3) T-motor VTOL Motors x 4
4) T-motor Flame ESC x 4
5) Connector

6) KST Servo x 2

7) KST Servo x 1

8) KST Servo x 1

10, 11, 12, 13) Connector

14) Power Plug

15) Connector

16) Power Plug

17) Connector Definition from the Left (1~8):

1. Aileron

2. Elevator

3. Throttle

4. Rudder

5. Down Right ESC

6. Upper Right ESC

7. Down Left ESC

8. Upper Left ESC
Tattu HV 26000mAh 6S 10C x 2 *Batteries are in separate shipment
