Z30 / Z45 Agricultural Drones
30 Liters / 45 Liters

Plug battery and go.

Newly upgraded high-strength truss structure, HD touchscreen RC controller. Large-flow impeller pumps and water-cooled centrifugal nozzles.

Z30/45: Services
Z30/45: Video
Z30/45: Video

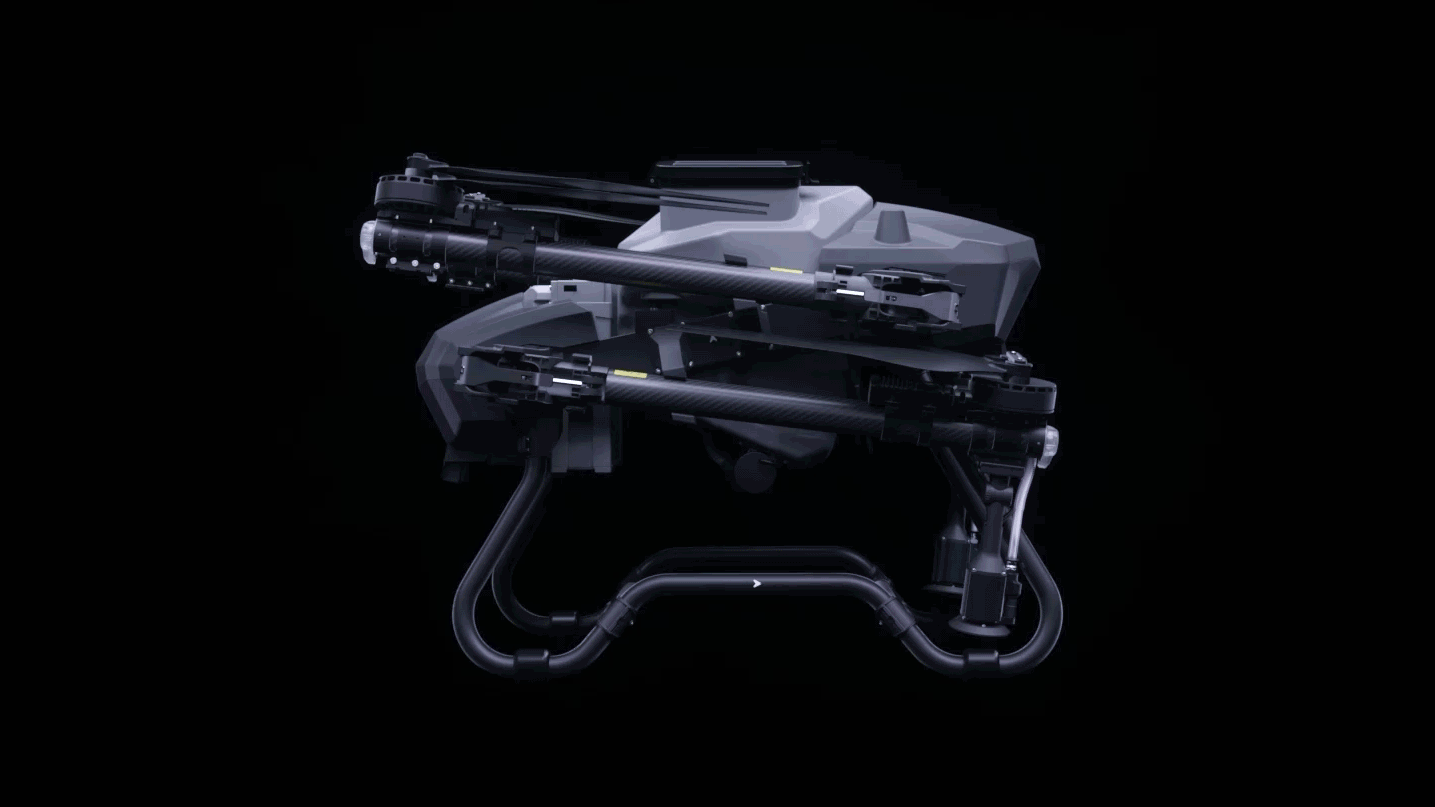

Z-Type Folding

Easy to Pick Up

Z30/45: Video

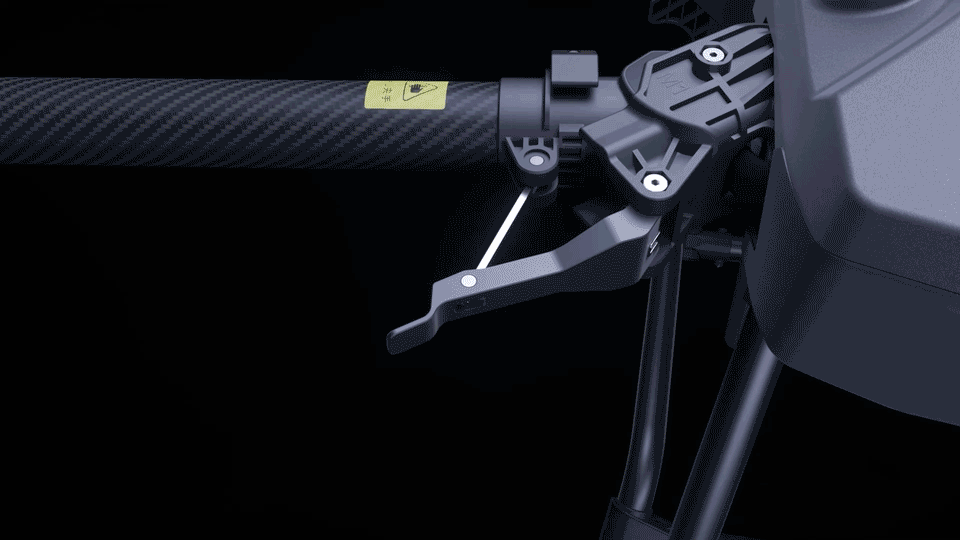

Press to Lock

Z30/45: Video

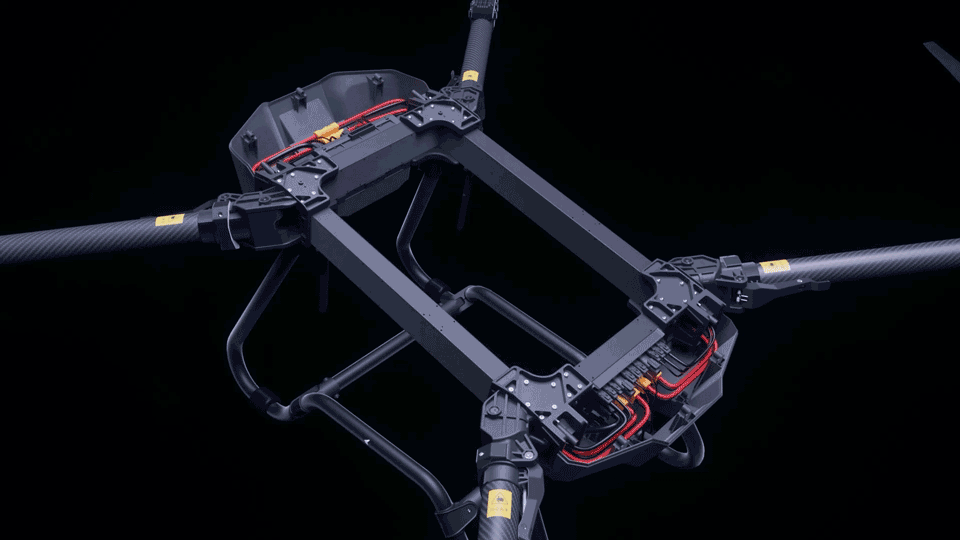

Truss Structure

Strong and Durable

Z30/45: Video

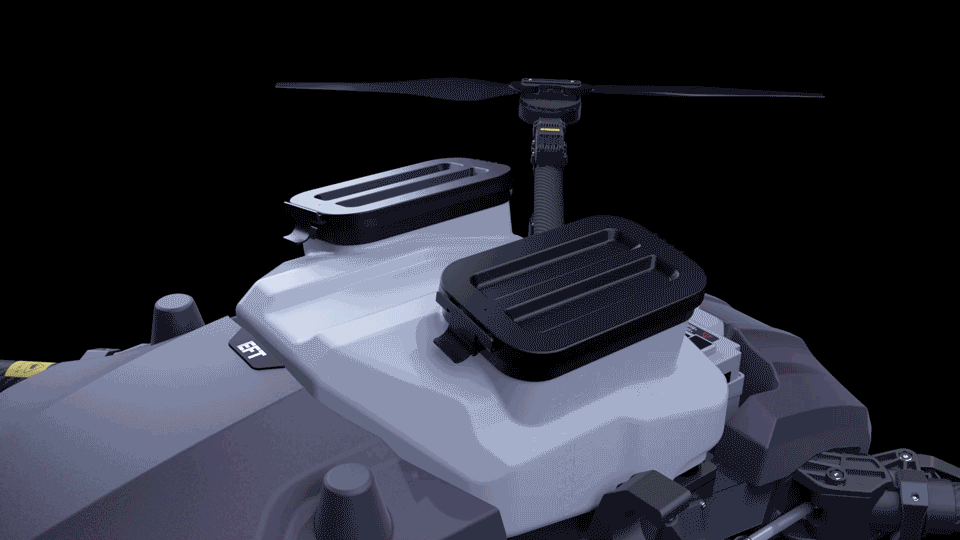

Double Inlets

Z30/45: Video
Z30/45: Pro Gallery

Altitude Stabilization

The drone flies above the corps at the desired spray distance above corps.

R-C (1).jpg

Obstacle Avoidance (optional)

When the drone is in Obstacle Avoidance mode. Users can fly in a direction away from the obstacle to exit Obstacle Avoidance mode and regain full control of the aircraft.

Z30/45: Products
Z30/45: Pro Gallery

Pellets Spreader

Easy to Replace

Z30/45: Video

IP67 Waterproof

Z30/45: Video

Easy to Repair

Z30/45: Video

Spreader V2.0

360°SPREADING
UP to 43CM²

Z30/45: Video
Z30/45: Video

Packing List


Ready to Fly


RTK 4G module (optional)


Front + Rear Radar, Altitude Stabilizaiton (optional)

Z30/45: Team

Z30/Z45 Agricultural Sprayer Parameters

Battery Drones

DRONE SYSTEM

Unloaded Spraying drone weight

(without batteries)

Unloaded Spraying drone weight

(with batteries)

Unloaded Spreading drone weight

(without battery)

Unloaded Spreading drone weight

(without battery)

Max Take-off weight

Wheelbase

Expand Size

Folded size

No-load hovering time

Full load hovering time

Working temperature

Z30 / Z45

29.8kg / 31.5kg

40kg / 45kg

30.5kg / 32.5kg

40.7kg / 46kg

70kg / 90kg

2025mm / 2272mm

Spraying drone: 2435*2541*752mm / 2845*2718*830mm

Spreading drone: 2435*2541*774mm / 2845*2718*890mm

Spraying drone: 979*684*752mm / 1066*677*830mm

Spreading drone: 979*684*774mm / 1066*677*890mm

17.5min (14S 30000mah) / 20min (18S 30000mah)

7.5min (14S 30000mah) / 7min (18S 30000mah)

0-40℃

Z30/45: List

SPRAYING SPREADING SYSTEM

Spaying tank

Water Pump

Nozzle

Spray width

Spreading tank

Max load

Applicable granule

Spread width

Z30 / Z45

30L / 45L

Volt:12-18S Power:30W*2 Max flow:8L/min*2

Vollt:12-18S Power:500W*2 Atomized particle size:50-500μm

4-8m

50L / 50L

30kg / 45 kg

0.5-6mm dry solids

8-12m

Z30/45: List

MOTOR SYSTEM

Model
Volt
KV
Maximum power
Constant power
Propeller size

Z30 / Z45

11115 / 11122
14S / 18S
95kv / 60kv
7350W / 9730W
3100W
43inch / 48inch

Z30/45: List

FLIGHT CONTROL

Operating Voltage
Working temperature
RTK
GPS
Wind resistance level

Z30 / Z45

12-80V
-10~60℃
Horizontal ±0.1m,Vertical ±0.1m
Horizontal ±1.5m,Vertical ±0.5m
Sustained wind:8m/s

Z30/45: List

REMOTE CONTROL

Resolution
display screen
Working time
Charging time
Control distance
Weight

Z30 / Z45

1080*1920
5.5inch
12h
5h(20W)
3km(3mHeight without shelter)
850g

Z30/45: List

RECOMMENDED BATTERY

Volt
Capacity
Weight

Z30 / Z45

14S / 18S
TATTU Agri 3.0 28000mah
10kg / 13.5kg
