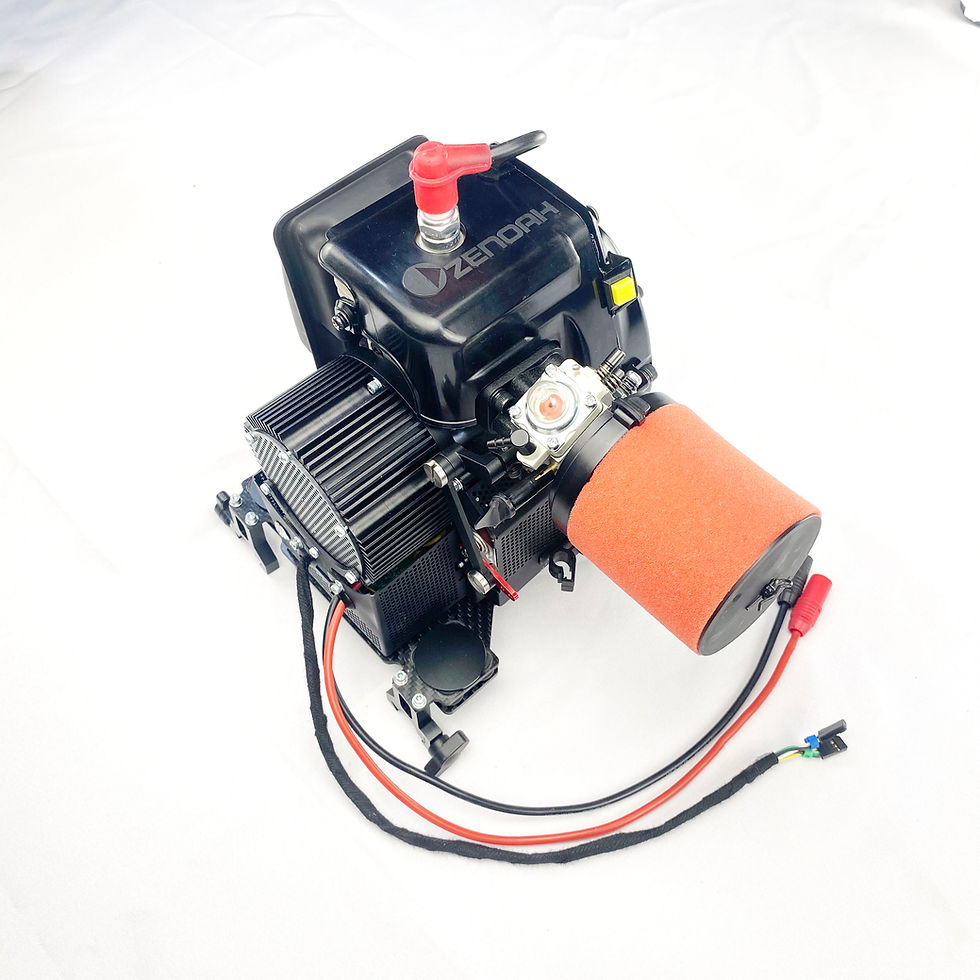

H2 ISG Hybrid Engine
H2 ISG (Integrated Satart & Generator) Gasoline Hybrid Engine We are proud to release the the upgraded H2, that is H2 ISG.New features are intruduced:
- ISG (Integrated Satart & Generator) system. Starter is not needed any more.
- Controller box is removed. The control board and LED are integrated in the generator.
- Remote starting is available. To start and stop the engine via RC controller switch or on GSC via MAVLink. It makes the Cold Starting easier as well.
- Replace heavy batteries with H2 hybrid engine. More than two hours can the drone fly. Make your drone more useful.
- INDUSTRIAL standard designed and manufactured Apply to 18 kg (40 lbs) take-off weight Quadcopters, Hexacopters or VOTL. Maximum payload is 5 kg (11lbs), Cruise time 2+ hours with 3 kg (6.6lbs) payload
- Environmental temperature between -20° and 40°C (-4° and 104°F). H2 is available in extremely cold areas without preheating.
- Plug & Play. Easy to mount on to your UAVs drones only by screwingDC 48V/12S output easy as batteries LOW Cost. Fulfill Automotive regular gasoline
PARAMETERS
H2 ISG
Weight
4.0kg(8.8lbs) w/o Accessories /
5.2kg(11.5lbs) Total
Power
1.8kW(2.4hp) Continuous /
2.0kW(2.6hp) Max. Power
Dimension（L x W x H)
260 x 312 x 325 mm/10 x 12 x 12 in
Applicable UAV Types
Multicopters & VTOL Fix-wings
Max. Take-off Weight
18kg(39.7lbs) or UAV suggested
Output Voltage
12 S (49V)
Fuel consumption
750 g/kw·h(hovering 1.5 L/h)
Service Temperature
-20 ~ 40 °C / –4 ~ 104 °F
Ceiling (above the sea)
1000 m / 3280 ft
Rotating direction
Clock wise (view from starter)
Fuel
Automotive #95 or above + 2T oil
H2 UAV Engine Hybrid Multirotor Power Configuration
Motor
Propeller
Prop. Number
Max. Takeoff Weight KG
Norm Takeoff Weight KG
Dji E2000Pro 6010kv130
21x7 Plastic
6
14.5
13.5
TmotorU8kv135
Tmotor22x6.6Pro CF
6
15.8
14.2
TmotorU10kv100
JXF/Tmotor24x9 CF
6
16.5
14.8
TmotorU10kv100
JXF/Tmotor26x8.5/ 26x9.2 CF
6
18.3
15.5
TmotorU10kv80 or TmotorU8IIkv85
Tmotor28x9.2 CF
6
19.5
16.5
TmotorU10kv100
JXF29x9.5 CF or Tmotor29x9.5 CF
4
18.0
16.2
Dji E5000
M10kv120
Dji 28x8
4
20.0
18.0
